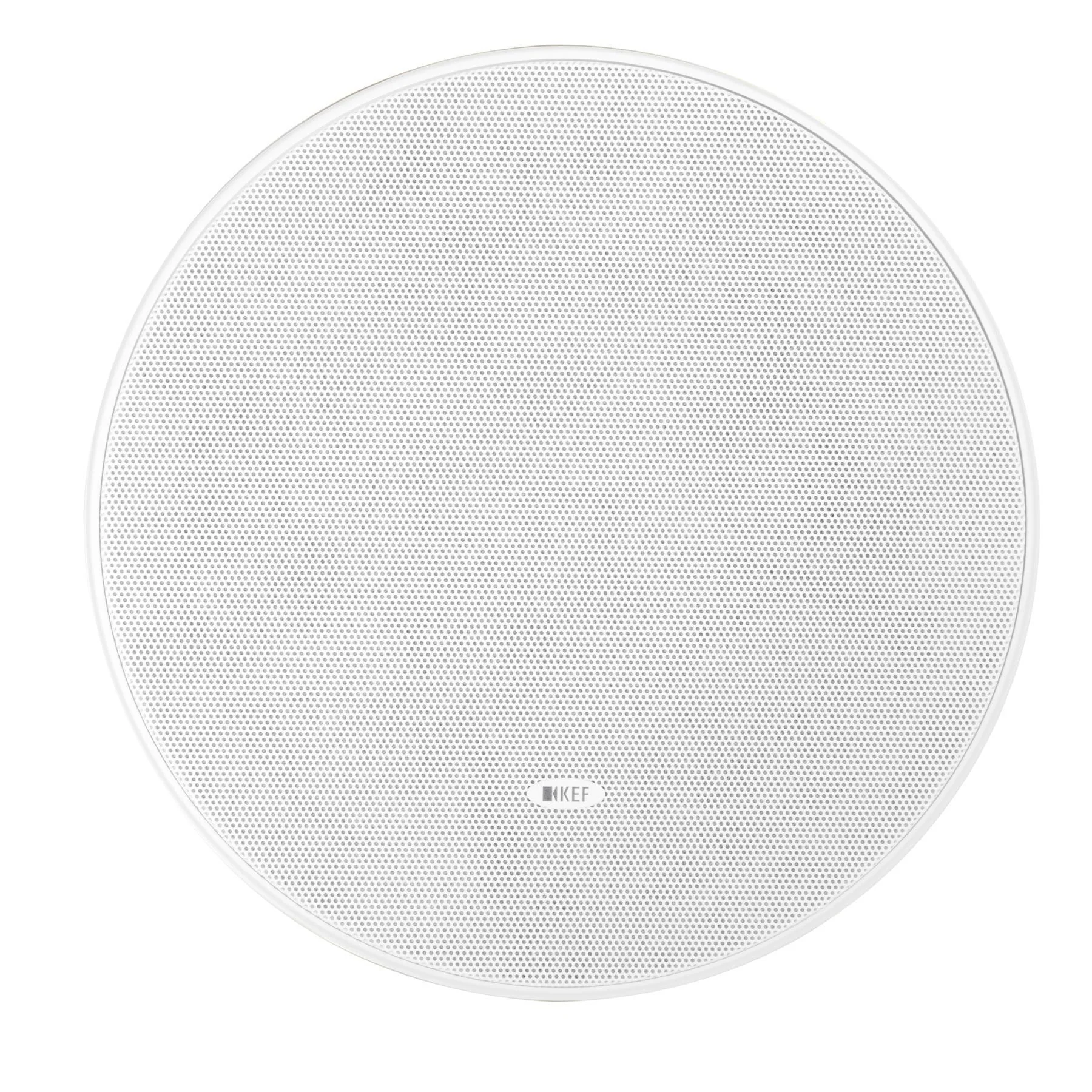

KEF Ci200TRB Ci-T Series Ultra-Thin In-Ceiling Subwoofer

KEF Ci200TRB Ultra-Thin In-Ceiling Subwoofer - Enhanced Bass in Minimal Space

Experience powerful bass without sacrificing space with the KEF Ci200TRB Ultra-Thin In-Ceiling Subwoofer. Designed with a slim profile and boasting an 8-inch subwoofer, this speaker delivers exceptional sound quality, perfect for environments where installation space is limited.

KEF Ci200TRB Key Features:

• Mounts in cavities less than 59mm (2 3/8in.) deep, ideal for narrow ceiling or wall spaces
• Ultra-slim 200mm (8in.) subwoofer unit offers impressive bass extension
• Paintable Ultra-Thin Bezel (UTB) and magnetic grille for seamless integration with any décor
• Versatile installation on any surface with dogleg feature
• Can be configured as a mono or stereo subwoofer
• Use in passive mode with internal crossover or active mode with KEF’s KASA500 System Amplifier

KEF Ci200TRB Specifications:

• Nominal Impedance: 2 x 8 Ohm (Stereo Mode), 16 Ohm (Mono Mode)
• Sensitivity: 87dB (2.83V/ 1m)
• Frequency Response: 42Hz-120Hz (Passive), 32Hz-120Hz (With Kasa500)
• Drive Units: LF: 200mm (8 in.)
• Recommended Amplifier Power: 10-125W (Passive), KASA500 (With Kasa500)
• Product External Dimension (H X W X D): Diameter: 290 mm (11.42 in.), Depth: 63mm (2.48 in.)
• Cut-Out Dimensions (H X W): 240mm (9.45 in.)
• Mounting Thickness: Ceiling Thickness (Maximum): 26mm (1.03 in.), Ceiling Thickness (Minimum): 4mm (0.16 in.)
• Mounting Depth From Surface: 59mm (2.32 in.)
• Optional Rough In Frame: RIF200R
• Optional Rear Enclosure: RNC200R
• Net Weight: 1.7kg (3.75 lbs)
• Unit Measurement: Piece

Upgrade your home theater or audio system with the KEF Ci200TRB Ultra-Thin In-Ceiling Subwoofer and enjoy immersive sound in even the most compact spaces.

KEF Ci200TRB Downloads
KEF Ci200TRB Manual
KEF Ci200TRB Spec Sheet
KEF Ci200TRB Cutout Template
KEF Ci Minimum Cabinet Volume Chart
KEF Architectural Brochure
KEF Architectural Selection And Setup Guide
KEF Architectural Accessory Reference Guide
KEF Architectural Speaker Group Specification Sheet
