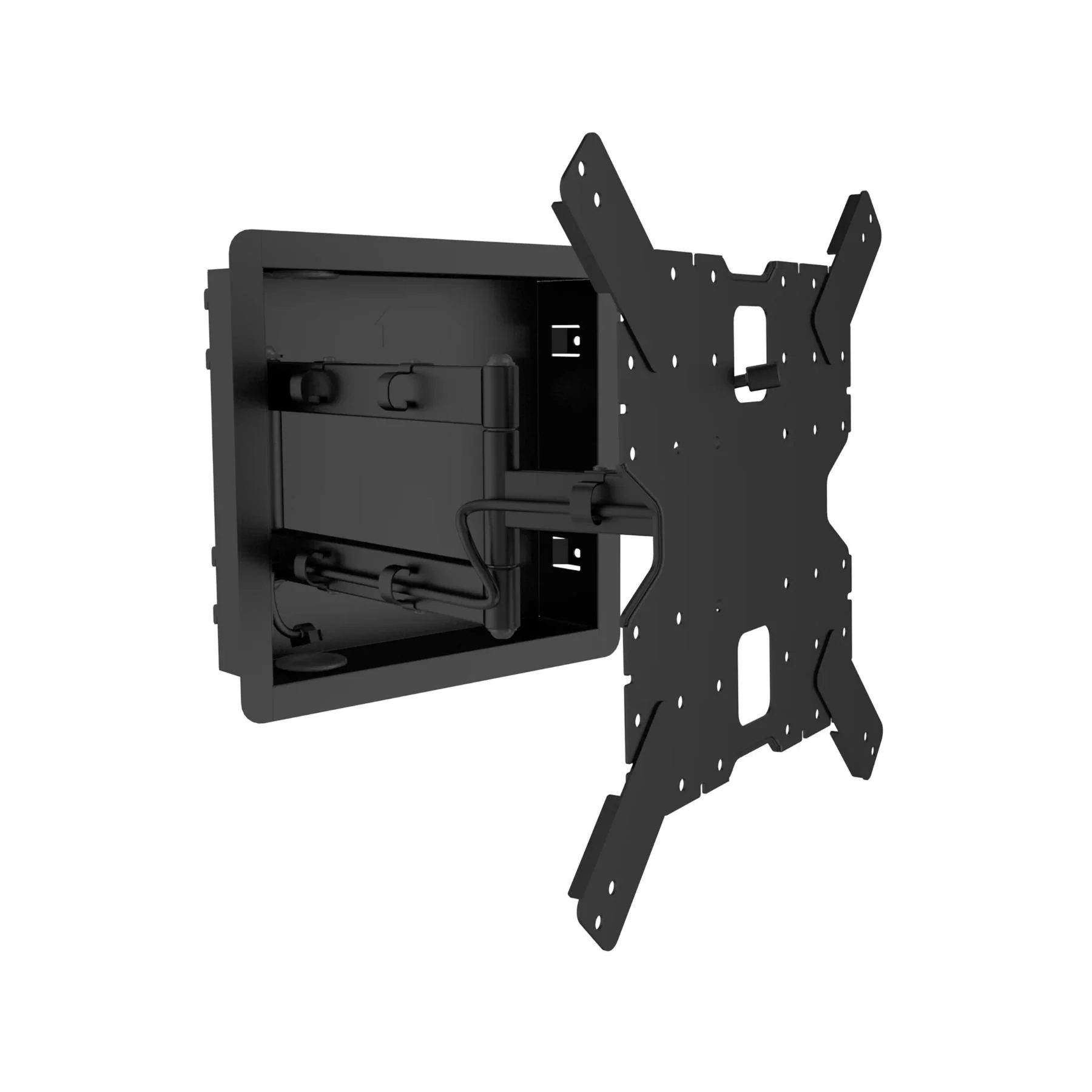

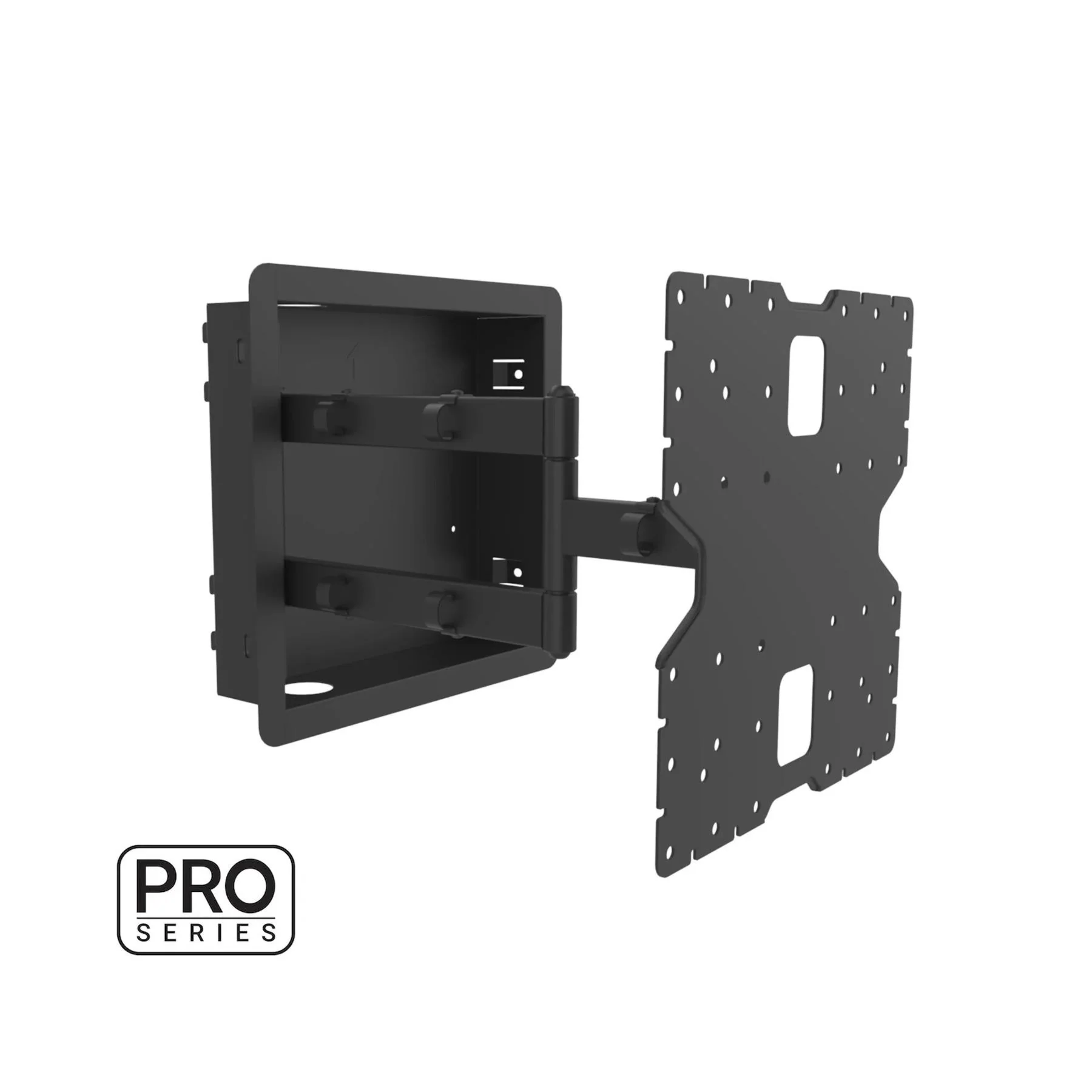

Kanto R400 Pro Recessed In-Wall TV Mount

The Kanto R400 Pro Recessed In-Wall TV Mount is designed to deliver a true “no-gap” look—letting compatible TVs sit perfectly flush against the wall for a clean, modern, picture-frame-style install. Its recessed in-wall box fits between standard 16" wood studs, creating hidden space for a streaming device and tidy cable routing so your setup stays sleek and clutter-free. When you need access, the full-motion arms extend up to 18" and offer wide swivel and tilt control for comfortable viewing and easier connections. With built-in cable management, rubber grommets for clean pass-throughs, and metal knockouts for adding in-wall power, the R400 is a pro-grade solution for premium, wire-free TV installations.

What It's Good At:

True zero-gap look for ultra-low-profile installs (perfect for OLED and slim TVs)
Hidden in-wall storage for streaming boxes and small AV accessories behind the TV
Full-motion flexibility with up to 18" extension, wide swivel, and accessible tilt
Clean, professional cable routing using grommets plus durable cable management clips
Installer-friendly recessed design built for 16" stud spacing and in-wall planning templates
Power-ready setup with metal knockouts to add an in-wall outlet inside the recessed box

Kanto R400 Pro Full Specifications:

Model: R400
Series: Pro
Mount Type: Recessed in-wall, full-motion articulating TV mount
Recommended TV Size: 35" to 65"
Max Weight Capacity: 80 lb (36 kg)
VESA Compatibility: 100 × 100 to 400 × 400
Flush/Wall Profile Performance:
- True zero-gap (flush) with VESA 300 × 300 or smaller
- 0.3" (0.8 cm) profile when using 400 × 400 VESA extensions
Extension Range: Up to 18" (45.7 cm) from the wall
Swivel: Up to 90° in either direction (dependent on TV size)
Tilt: +9° to -2° (accessible tilt mechanism)
Horizontal Leveling: Adjustable
Stud Requirements: Designed for 16" (40.6 cm) stud spacing (wood studs only)
Minimum Wall Thickness Required: 3.5" (8.9 cm)
Cable Management: Integrated cable management + metal cable management clips on articulating arms
Cable Routing: Rubber grommets for clean cabling through the recessed box
In-Wall Power Support: Metal knockouts for installing a power outlet inside the box
Construction: Solid steel construction
Finish: Durable powder-coated finish
Recessed Opening / Box Space (Technical Illustration Dimensions): 14.3" (36.2 cm) / 13.3" (33.9 cm) / 3.5" (8.9 cm)
Product Weight: 23.1 lb (10.5 kg)
Shipping Box Weight: 25.3 lb (11.5 kg)
Shipping Box Dimensions: 19.9" × 18.3" × 4.9" (50.5 × 46.5 × 12.5 cm)
UPC: 800152721651
Warranty: Ten-year manufacturer’s warranty
What’s Included:
- R400 Pro-Series Recessed In-Wall TV Mount
- Drywall Template
- In-Wall Template
- Mounting Hardware (for wood stud installation)
- Manual(s)

Kanto R400 Pro Q&A:

Will this mount give my TV a true flush, “zero-gap” look?: Yes. TVs using a VESA pattern of 300 × 300 or smaller can sit directly flush against the wall for a true no-gap installation.
What TV sizes and weights does the Kanto R400 support?: The R400 is built for 35" to 65" TVs and supports up to 80 lb (36 kg).
What VESA patterns are compatible with the R400?: It supports 100 × 100 through 400 × 400. For 400 × 400, included extensions are used and the profile becomes 0.3".
How far can I pull the TV out from the wall?: The mount extends up to 18" (45.7 cm), making it easy to access ports, manage cables, or adjust viewing angles.
Does it swivel and tilt for better viewing angles?: Yes. It provides up to 90° swivel (each direction, depending on TV size) and an accessible tilt range of +9° to -2°.
Can I hide cables and streaming devices behind the TV?: Yes. The recessed box is designed to store a streaming box and small AV accessories, with rubber grommets and integrated cable management for a clean setup.
Can I add power inside the recessed box for a cleaner install?: Yes. The recessed box includes metal knockouts so a power outlet can be installed inside the box for a more concealed, professional finish.
What type of wall and studs are required for installation?: The R400 is designed for wood studs only, built for 16" stud spacing, and requires a wall thickness of at least 3.5" (8.9 cm).

TV Wall Mounts

Kanto R400 PRO In-Wall TV Mount

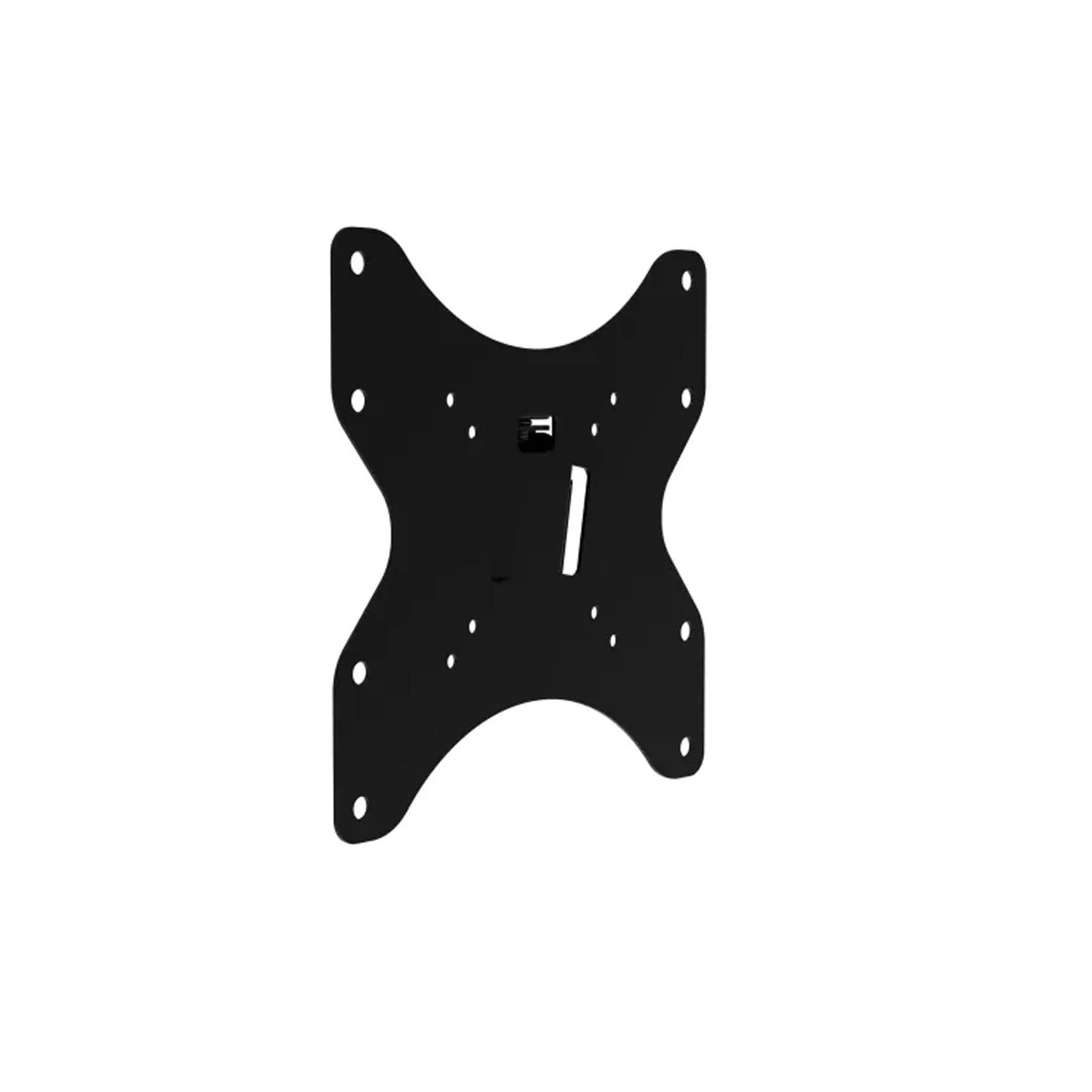

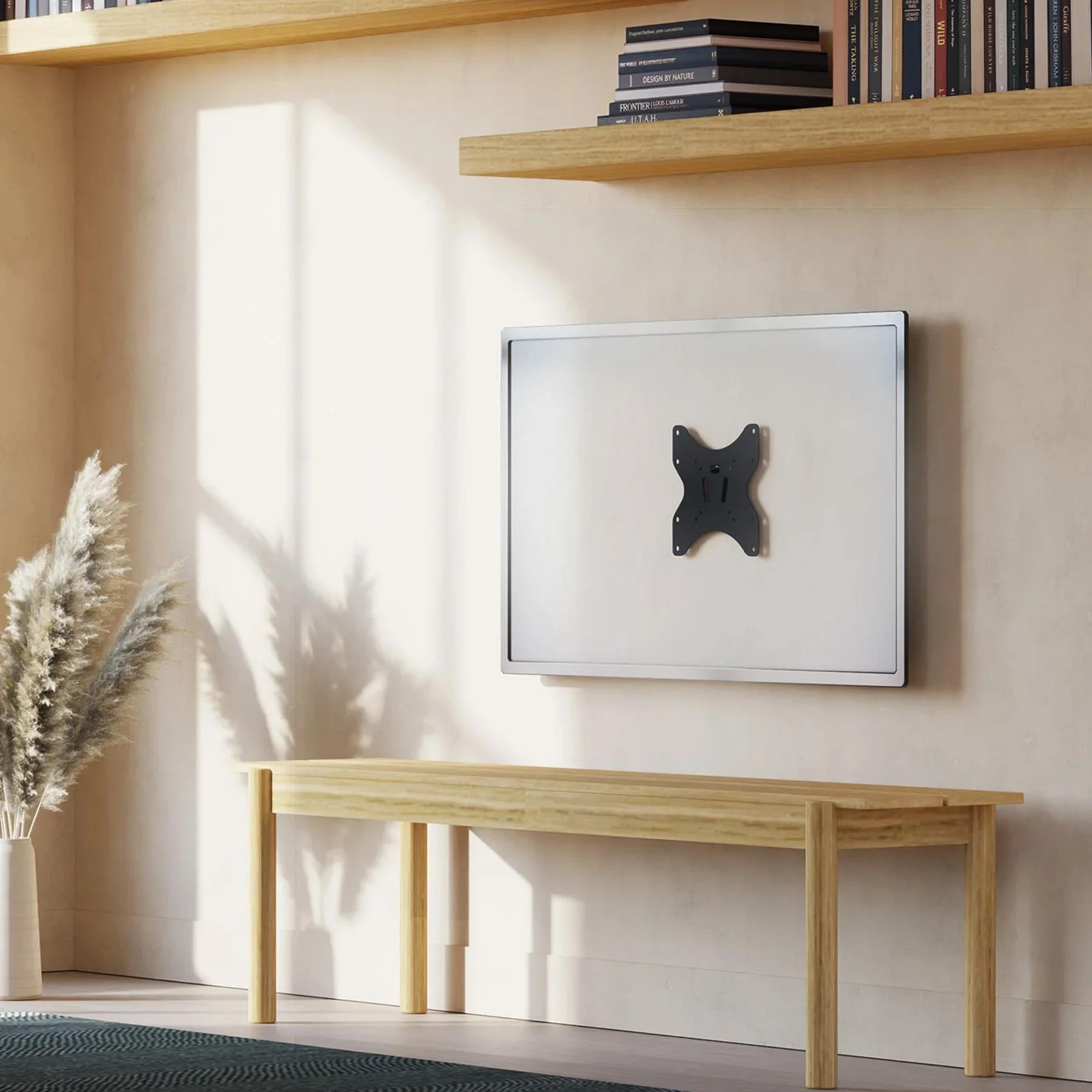

Kanto LF100 Fixed TV Mount
